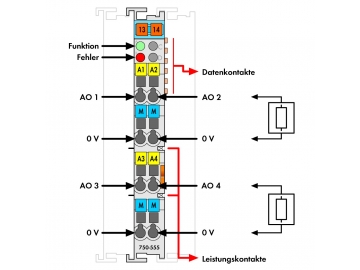

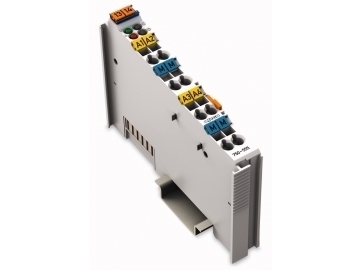

4-channel analog output; 2- to 4-conductor connection
750-555 Manual 下載 750-555 Data sheet 下載
WAGO USB Service Cable Driver / 750 and 857 Series

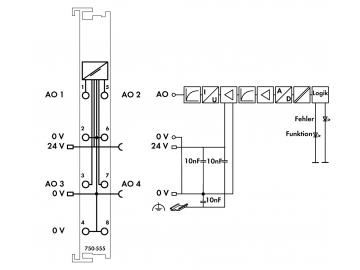

The analog output module generates signals of a standard magnitude 4–20mA.
The output signal is electrically isolated and transmitted with a resolution of 12 bits.
Power is derived from the field side.
The output channels of the module have a common ground potential.
Load impedance: either 0 ... 300 Ω or 300 ... 600 Ω (use same range of impedance for all loads!)
