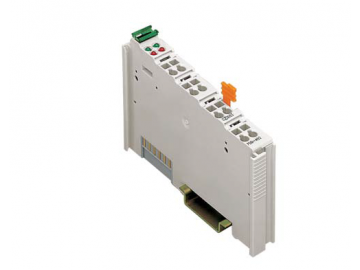

4-Channel Analog Input Module, 4 … 20 mA
Single-ended (S.E.)
750-455 Manual 下載 750-455 Data sheet
WAGO USB Service Cable Driver / 750 and 857 Series
The analog input module processes signals of a standard magnitude 4–20mA.
The input signal is electrically isolated and is transmitted with a resolution of 12 bits.
The internal system supply powers the module.
The input channels of the module have one common ground potential.
