INS-803 Data sheet 下載
Product Introduction & Benefits

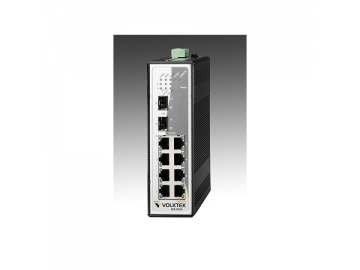

VOLKTEK's INS-803 Series Industrial Switch is an 7-port 10/100Base-TX with Dual 100Base-FX port (Small Form Pluggable (SFP) module optional) switch delivered in a rugged, hardened case and components able to withstand a high degree of vibration and shock and temperatures as high as 70oC. Not an ordinary office switch, the INS-803 Switch is engineered and designed especially for harsh, industrial type applications. With it's hardened case, redundant DC power inputs, fiber optic uplinks, and high performance components, the INS-803 is perfectly suited for your industrial automation environment.
Boasting full management capability through Web and SNMP, the INS-803 becomes an ideal solution for industrial network applications that require managed devices coupled with hassle-free deployment and setup. The INS-803's JET Ring offers faster recovery time of less than 300ms in case of any node failure.
Main Features:
●7 x 10/100 Mbps ports
●1 x RJ-45 console port (RS-232)
●Dual Redundant 100Base-FX ports with SFP type fiber transceivers
●Web based / SNMP Management
●Rugged, hardened IP30 case
●Vibration/Shock operational
●Dual redundant DC power inputs
●Power Terminal Block
●Wide voltage range: 9~48V
●DIP switch to enable or disable alarm functions
●Power input polarity protection function
●Under power & over power detection function
●Operating temperature: 0oC~70oC
●Full compliance with IEEE: 802.3, 802.3u, 802.3x, 802.1D, 802.1W, 802.1Q, 802.1p
●JET Ring (redundant ring capability < 300 ms)
●Non-blocking, store and forward switching
●Automatic learning of up to 8192 MAC addresses
●Auto-negotiation on all10/100BaseTX ports
●Auto-MDI/MDIX (crossover) on all 10/100BaseTX ports
●Full VLAN (802.1q) VID processing with double tagging up to 64VIDs
●IGMP Snooping for multicast filtering
●Port configuration, status, statistics, security
●Loss of link management on fiber ports
●SNMP v2 and RMON
Applications:
●Industrial/Factory/Laboratory automation SCADA systems
●Self-service banking systems
●Factory robots and HVAC control systems
●Wafer fabrication systems
●Point of Sale (POS) systems
●Security cameras or other remote distributed serial devices
●Rugged, hardened case and industrial grade components able to withstand extreme vibration/shock.
