FS6-1
WATER FLOW SWITCH

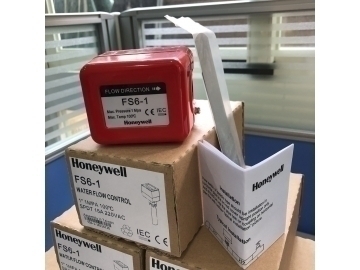

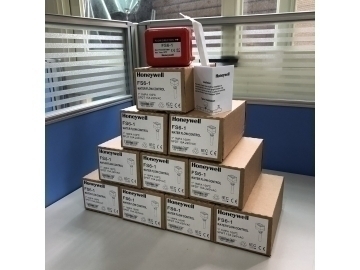

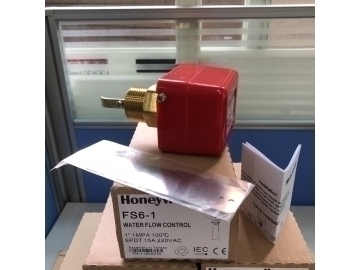

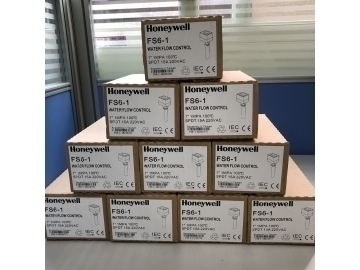

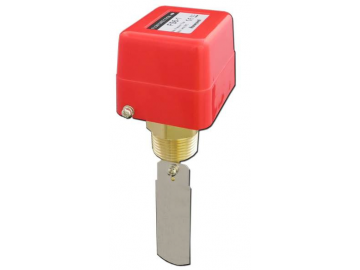

Honeywell FS6-1 WATER FLOW SWITCH
Application
FS6-1 series may be used on liquids with high salt or chlorine content but is not for use in hazardous atmospheres.
They may be also used outdoors but must be protected from weather or splashing water.
All series FS6-1 flow switches are designed for use only as operating controls.
They required used in liquid flow lines carrying water or any fluid neither harmful to brass and phosphor bronze nor classified as a hazardous fluids.
Features
● High reliability & accuracy & rugged construction
● Micro Switch SPDT
● Adjust flow rate
● Connection of screw terminals
● Rapid response
● Provide paddle size 35 & 59 & 89& 126& 152mm
● Set on vertical & horizontal inside tube
Specifications
| Operating Pressure | 10kg/cm2 (1000KPa) |
| Withstand Pressure | 17.85 kg/cm2 (1750Kpa) |
| Insulation Resistance | Over 100, DC500VM |
| Withstand Voltage | AC1500V/1 minute |
| Contact Point Life | 1000K cycle |
| Bellows Life | 500K cycle |
| Temperature of Fluid | Max.100 ℃(212℉) |
| Temperature of Ambient | 0~60 ℃(32~140℉) |
| Setting | Close 0.5N Open 1.5N |
| Airproof Pressure of test | Max. 1.6 Mpa Min. 1.0 Mpa |
| Certification | |
| Material | Housing:ABS Body: Brass Paddle: stainless steel |
| Protection Level | IP54 |
