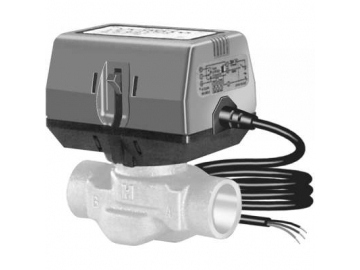

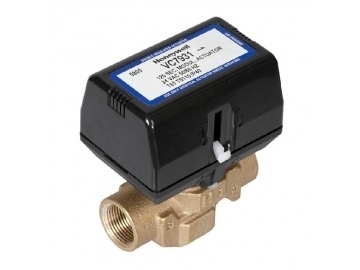

Modulating actuator for VC Series valves
VC7900 Series Specification sheet (English) 下載
Overview
Control central heating and cooling, fan coil systems, radiators and convectors. Depending on the model, it can be controlled by a low voltage SPST or SPDT switch, pulse-width modulated 24 Vac signal, or floating input, modulating controller.
Features
•Use with two-way or three-way valves.
•Double insulated actuator.
•Five foot plenum-rated cable.
•Quick and easy replacement of moving parts.
•Actuator head installation does not require draining the system.
•Selectable/switchable electronic fail safe normally open or normally closed.
•Available with valve bodies with 1000-series 2-way and 6000-series 3-way cartridges for new construction.
•All VC Series actuator-valve combinations provide 60 psi close-off.
Product Specifications
| Application | HVAC |
| Dimensions (in.) | 2.8 in. high x 3.7 in. wide x 2.7 in. deep |
| Dimensions (mm) | 70 mm high x 94 mm wide x 68 mm deep |
| Used With | 3000 Series 2-way and 7000 Series VC valve bodies only |
| Weight (lb) | 0.84 lb |
| Weight (kg) | 0.38 kg |
| Materials | Plastic housing |
| Item Type | Product |
| Mounting | Direct Coupled |
| Frequency | 50 Hz; 60 Hz |
| Approvals, Underwriters Laboratories Inc. | UL Recognized, File# MH11826 |
| Approvals, CSA | CSA Certified: LR1322-367 |
| Electrical Connections | Cable |
| Operating Humidity Range (% RH) | 5 to 95% RH, non-condensing |
| Supply Voltage | 24 Vac |
| Power Consumption | Driving-- 6 VA |
| Shipping and Storage Temperature Range (F) | -40 F to +150 F |
| Shipping and Storage Temperature Range (C) | -40 C to +65 C |
| Approvals, CE | 89/336/ECC, 73/23/EEC |
| Ambient Temperature Range (F) | 32 F to 150 F |
| Ambient Temperature Range (C) | 0 C to 65 C |
| Environmental, Electrical or Ingress Protection Rating | Double Insulated, IP40 |
| Internal Auxiliary Switch | 0 |
| Fluid Temperature (C) | 95 C |
| Fluid Temperature (F) | 203 F |
| Actuator Type | Valve |
| Control Signal | (0)2-10 Vdc |
| Fail Safe Mode | Stays in place |
| Stroke (in.) | 0.4 in. |
| Stroke (mm) | 10 mm |
| Cable | Molded strain relief |
| Timing, Nominal | Driving @ 60 Hz (sec)-- 120 sec |
| Maximum Differential Pressure Ratings (Close-off) (psi) | 60 psid |
| Maximum Differential Pressure Ratings (Close-off) (kPa) | 400 kPa |
| Shaft Adapter Type | Self-alignment |
| Manual operation | Lever |
| Electrical Connections (in.) | 39 in. |
| Electrical Connections (mm) | 1 m |
